Overview

The Open-Motion software stack comprises three coordinated layers:

  1. Embedded firmware running on the cameras, aggregator, and console
  2. Host-side software running on the PC for device control, data acquisition, and visualization
  3. Test and validation utilities used in development, manufacturing, and QA workflows

Each layer is modular and open-source, allowing for extensibility and integration.

Licensing

All software developed on Openwater's main branch is licensed under the AGPL. Hardware designs are released under Creative Commons ShareAlike 4.0.

For the latest released version of the Open-Motion application, see the openmotion-bloodflow-app repository.

Tech stack

  • PyQt 6.8 — desktop GUI framework
  • openmotion-sdk — Python SDK (repo)
  • SDK documentation lives at openmotion-sdk/docs/
  • Microcontrollers on the sensor modules and console
  • Serial COM port protocol
  • USB 2.0 HS
  • PySerial 3.5
  • libUSB 3.3.1
  • PyUSB 1.3.1

The database is an active roadmap feature and is currently in development.

Tooling

Category Tools / Platforms
Version control Git + GitHub
CI/CD (under development) GitHub Actions
IDEs STM32CubeIDE
Documentation Markdown, .docx
Testing Oscilloscope, logic analyzers, unit tests

Database architecture

The database is an active roadmap feature and is currently in development.

Software architecture

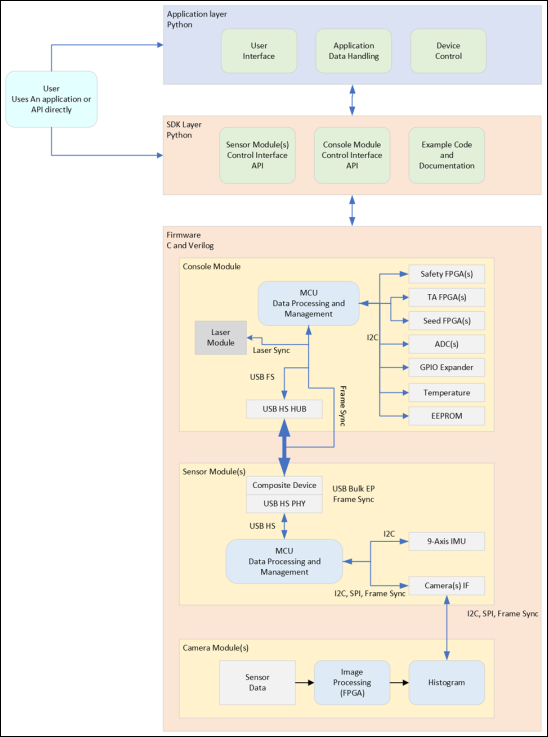

Open-Motion software architecture in three layers: the Application layer (Python) provides User Interface, Application Data Handling, and Device Control to a User who can also interface directly with APIs; the SDK Layer (Python) exposes Sensor Module Control Interface API, Console Module Control Interface API, and Example Code and Documentation; the Firmware layer (C and Verilog) runs on the Console Module (MCU plus Safety/TA/Seed FPGAs, ADCs, GPIO Expander, Temperature, EEPROM, Laser Module, and USB FS/HS hub) and on Sensor Modules (Composite Device, USB HS PHY, MCU for data processing, 9-Axis IMU, Camera Interface); the Camera Module(s) layer handles Sensor Data, Image Processing on FPGA, and Histogram generation; communications use I2C, SPI, Frame Sync, and USB.
Figure 6 — Open-Motion software architecture (ER-00014 Rev A, p. 14).

At a glance, the architecture flows:

Camera FPGAs ──► Aggregator MCU ──► Console MCU ──► Host PC
   (Verilog)       (STM32)            (STM32)        (Python SDK / PyQt6 app)

with control plane and safety interlocks managed by additional FPGAs and microcontrollers within the Console.

Embedded firmware layer

This layer includes all firmware running on hardware devices — cameras, aggregator, and console.

Camera Module FPGA firmware
Hardware Lattice FPGA
Repository openmotion-camera-fpga
Function Converts raw 2 MP grayscale image frames into 1024-bin histograms at 40 FPS
Interface Outputs histogram data via SPI
Customizable RTL (Verilog) can be modified for alternative processing methods

Aggregator Board firmware
Hardware STM32 MCU
Repository openmotion-sensor-fw
Function Receives histogram data from 8 camera SPI inputs
Aggregates and transmits data over USB HS
Provides USB control endpoints for config and status
Interface Outputs aggregated data and exposes a control/monitoring interface over USB

Console firmware
Hardware STM32 MCU + USB hub + laser-control FPGAs
Repositories openmotion-console-fw
motion-safety-fpga
motion-seed-fpga
motion-ta-fpga
Function Generates FSIN sync pulses
Triggers laser pulses with programmable delay
Routes Aggregator data to the host PC
Controls power, fan, and safety interlocks
Provides a monitoring and control interface for the entire system
Interface Outputs aggregated data and exposes a control/monitoring interface over USB

Sensor Module diagram

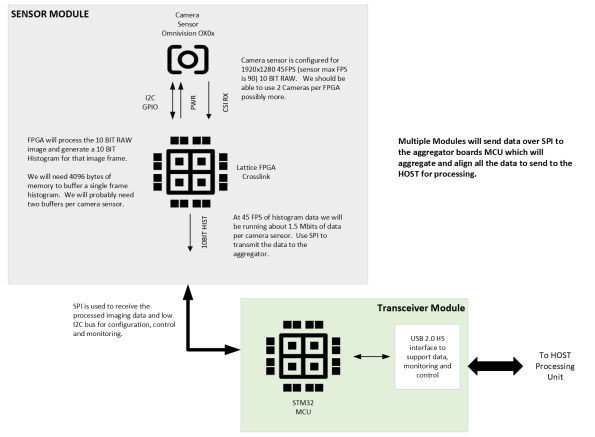

Sensor Module schematic: a Camera Sensor (Omnivision OX0x) configured for 1920×1280 at 45 FPS / 10-bit RAW connects via I2C, GPIO, PWR, and CSI RX to a Lattice FPGA (Crosslink) which processes 10-bit RAW images and generates a 1024-bin histogram per frame, buffering with about 4096 bytes per camera sensor; histogram data flows over SPI at approximately 1.5 Mbits per camera sensor up to a Transceiver Module hosting an STM32 MCU; the Transceiver Module aggregates and aligns data from multiple cameras and transmits it over USB 2.0 HS to the Host Processing Unit; SPI is used for data, I2C for configuration, control, and monitoring.
Figure 7 — Sensor Module schematic (ER-00014 Rev A, p. 15). The Lattice Crosslink FPGA performs on-camera histogramming; the STM32 MCU on the Transceiver Module aggregates streams and uplinks via USB HS.

Host software layer

This layer runs on the PC and provides device control, data acquisition, and visualization.

Python SDK
Repository openmotion-sdk
Function Enumerates and connects to aggregators and console
Reads and parses 16-camera histogram streams
Computes blood flow and volume metrics
Provides real-time visualization and logging
Platform support Current: Windows 11+
Future: macOS 12+, Linux
Extensibility Open-source and modular (Python 3.12+)
Integrates with NumPy, Pandas, Jupyter, and other scientific tools
Example test scripts in openmotion-sdk
API documentation in openmotion-sdk/docs

Test & Validation utilities layer

These tools are used in development, manufacturing, and QA workflows.

Test Engineering Application
Repository openmotion-test-app
Framework Python + PyQt6
Function Live preview of histogram data per camera
Validate USB/SPI communication
Inspect hardware status (version, ID, sync)
Automate production tests

Repository map

A consolidated view of all Open-Motion software repositories:

Layer Repo Purpose
Firmware (FPGA) openmotion-camera-fpga Camera-side histogramming
Firmware (MCU) openmotion-sensor-fw Aggregator board firmware
Firmware (MCU) openmotion-console-fw Console MCU firmware
Firmware (FPGA) motion-safety-fpga Laser safety interlock
Firmware (FPGA) motion-seed-fpga Laser seed control
Firmware (FPGA) motion-ta-fpga Timing/aggregator FPGA
Host SDK openmotion-sdk Python SDK
Host application openmotion-bloodflow-app Reference blood-flow GUI
Test/QA openmotion-test-app Test engineering tool
